Wind Cable Description:

Torsion resistant low-voltage single and multicore EPR-insulated copper cables.

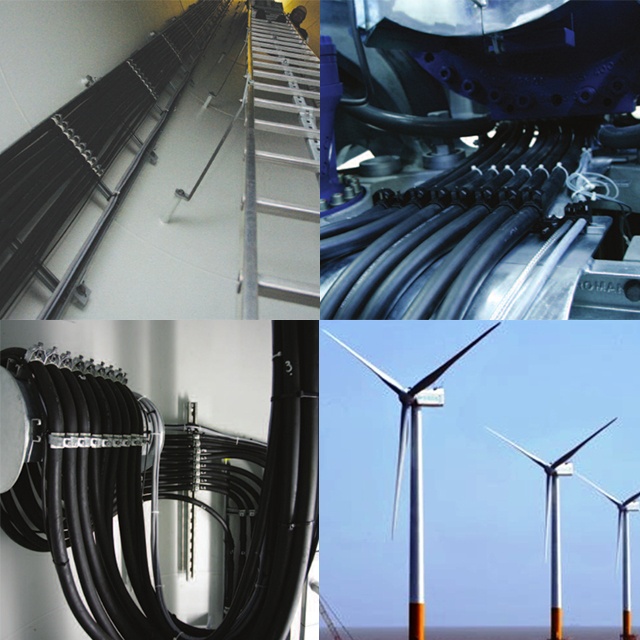

This cable is specially designed for Wind Turbines and to be used for the Loop.

Wind Cable Design:

1. Conductor
Flexible (fine wire class 5 acc. to IEC/EN 60228)
Annealed plain copper – Optional PET separator on core

2. Insulation
Special cross-linked EI7 rubber for high temperatures
Optional PET tape on insulation or assembling

3. Sheath
High mechanical performance, oil- and ozone resistant
Special cross-linked EM7 rubber improved for low temperature behaviour (-40°C)
Colour: black

Cable Specification:

Cable Size	Conductor Structure	Insulation Thick	Sheath Thick	Cable Diameter
No.x mm2	No./mm	mm	mm	mm
H07BN4-F 1×1.5	30/0.25	0.8	1.4	5.7
H07BN4-F 1×2.5	49/0.25	0.9	1.4	6.3
H07BN4-F 1×4	56/0.30	1.0	1.5	7.2
H07BN4-F 1×6	84/0.30	1.0	1.6	7.9
H07BN4-F 1×10	84/0.40	1.2	1.8	9.5
H07BN4-F 1×16	126/0.40	1.2	1.9	10.8
H07BN4-F 1×25	196/0.40	1.4	2.0	12.7
H07BN4-F 1×35	276/0.40	1.4	2.2	14.3
H07BN4-F 1×50	396/0.40	1.6	2.4	16.5
H07BN4-F 1×70	360/0.50	1.6	2.6	18.6
H07BN4-F 1×95	475/0.50	1.8	2.8	20.8
H07BN4-F 1×120	608/0.50	1.8	3.0	22.8
H07BN4-F 1×150	756/0.50	2.0	3.2	25.2
H07BN4-F 1×185	925/0.50	2.2	3.4	27.6
H07BN4-F 1×240	1221/0.50	2.4	3.5	30.6
H07BN4-F 1×300	1517/0.50	2.6	3.6	33.5
