JIS C 3410 shipboard individual screened telephone cable application

Instrument circuit up to 250 V, instrument safe systems. Fixed installation for instrument, communication, control and alarm system in both explosion risk and safe areas, general purposes.

JIS C 3410 shipboard individual screened telephone cable model

[FA-] TTPY-S, TTPYC-S, TTPYCY-S
250V TTY-S, FA- TTY-S
250V TTYC-S, FA- TTYC-S
250V TTYCY-S, FA- TTYCY-S

JIS C 3410 shipboard individual screened telephone cable standard

– Design guide : JIS C 3410(1999)
– Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
– Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)
– Max. conductor temperature : 60

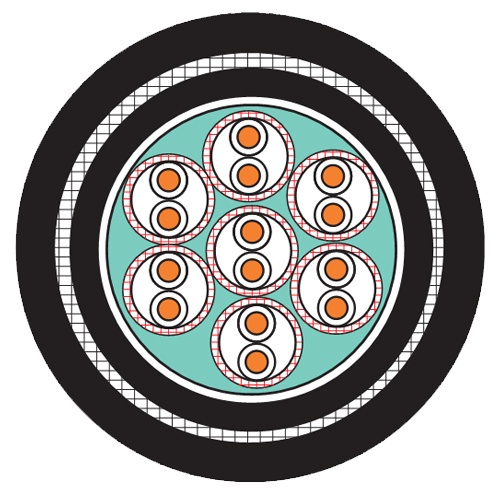

JIS C 3410 shipboard individual screened telephone cable construction

Classification	Code	Construction details
Conductor	TT	Tinned Copper Wire JIS C3410
Insulation	Y	PVC as per JIS C 3410
Individual Shield	-S	Tinned Copper Wire
Armor	C	Galvanized steel wire braided
	CB	Tinned copper wire braided
Paint		The white paint should be painted uniformly
Covering	Y	PVC as per JIS C 3410
		Color: Black

Recommendations
Minimum cable bending radius
The internal radius of cable bends which are not subjected to movements by expansion, is not to be less than :
6 times the external diameter of cable
Cable which are subjected to movements by expansion and the high voltage cable are to be bent to a form of at least 12 times cable diameter.
Installations temperature
Minimum recommended temperature of installations :
-10°C Ship wiring cable with PVC sheath
-20°C Elastomeric on/off shore cables
Installations pulling force
The cable pulling force can be estimated, as a maximum limit :5Kp per mm2 conductor area in the cable.Additional tension will be supplied from the braid and the insulation
and sheathing compound.
