Type W Flat Portable Power Mining Cable 2KV Application
Applications:
-Designed for use as trailing cables on DC mining equipment
-Designed for use where diode grounding is employed
-For battery charges and oil drilling rigs

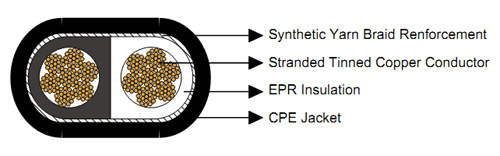

Type W Flat Portable Power Mining Cable 2KV Construction

Conductor:
-4 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
-Ethylene Propylene Rubber (EPR) insulation colored (black and white)
Jacket:
-Extra-heavy-duty, lead-cured ChlorinatedPolyethylene (CPE)
Options:
-Colored jackets are available

Type W Flat Portable Power Mining Cable 2KV Features
Low moisture absorption
Flexible cord
Excellent flexibility
Excellent resistance to acid substances
Excellent resistance to alkali substances
Excellent resistance to high temperatures
Excellent resistance to blows or collisions
Excellent resistance to grease
Excellent resistance to abrasion
Excellent resistance to moisture
Excellent resistance to spreading flames
Excellent resistance to mechanical tension
Excellent resistance to oil
Excellent resistance to flattening
Excellent resistance to mechanical mistreatment
Excellent resistance to the ozone
Excellent resistance to scratching
Excellent mechanical resistance

Type W Flat Portable Power Mining Cable 2KV Applied Standards

ICEA S-75-381/NEMA WC-58, ICEA S-95-658/NEMA, WC70, ASTM 172, ASTM B-33, UL 44

Type W Flat Portable Power Mining Cable 2KV Specifications

Construction	Strands	Nominal Insulation Thickness		Nominal Sheath Thickness		Nominal Outer Diameter Height×Width		Nominal Weight		Currents
Cores×AWG/kcmil	–	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
2×8	133	0.06	1.5	0.080	2.0	0.51×0.84	13.0×21.3	340	506	72
2×6	133	0.06	1.5	0.080	2.0	0.56×0.93	14.2×23.6	440	655	95
2×4	259	0.06	1.5	0.095	2.4	0.61×1.05	15.5×26.7	550	818	127
2×3	259	0.06	1.5	0.095	2.4	0.68×1.14	17.3×29.0	675	1005	145
2×2	259	0.06	1.5	0.095	2.4	0.73×1.24	18.5×31.5	810	1205	167
2×1	259	0.08	2.0	0.110	2.8	0.81×1.40	20.6×35.6	1020	1520	191
2×1/0	259	0.08	2.0	0.125	3.2	0.93×1.51	23.6×38.2	1265	1880	217
2×2/0	329	0.08	2.0	0.125	3.2	0.99×1.63	25.1×41.4	1515	2255	250
2×3/0	413	0.08	2.0	0.140	3.6	1.03×1.77	26.2×45.0	1810	2694	286
2×4/0	532	0.08	2.0	0.140	3.6	1.10×1.89	27.9×48.0	2175	3237	328
