Type W Round Portable Power Mining Cable 2KV Application
Applications:
Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is not required for fail-safe ground monitoring
-Where induced voltages do not present a problem

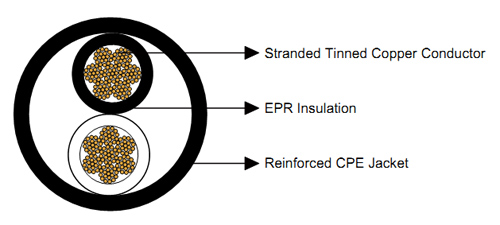

Type W Round Portable Power Mining Cable 2KV Construction
Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white, red and green)
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead-
cured Chlorinated Polyethylene (CPE)
Options:
-Colored jackets are available

Type W Round Portable Power Mining Cable 2KV Features
Low moisture absorption
Flexible cord
Excellent flexibility
Excellent resistance to acid substances
Excellent resistance to alkali substances
Excellent resistance to high temperatures
Excellent resistance to blows or collisions
Excellent resistance to grease
Excellent resistance to abrasion
Excellent resistance to moisture
Excellent resistance to spreading flames
Excellent resistance to mechanical tension
Excellent resistance to oil
Excellent resistance to flattening
Excellent resistance to mechanical mistreatment
Excellent resistance to the ozone
Excellent resistance to scratching
Excellent mechanical resistance
Type W Round Portable Power Mining Cable 2KV Applied Standards

ICEA S-75-381/NEMA WC-58, ICEA S-95-658/NEMA, WC70, ASTM 172, ASTM B-33, UL 44

Type W Round Portable Power Mining Cable 2KV Specifications

Construction	Strands	Insulation Thickness		Sheath Thickness		Outer Diameter		Weight		Current
Cores×AWG/kcmil	–	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
2×8	166	0.06	1.5	0.110	2.8	0.83	21.1	391	581	72
2×6	259	0.06	1.5	0.125	3.2	0.94	23.9	571	849	95
2×4	412	0.06	1.5	0.140	3.6	1.07	27.3	793	1180	127
2×2	259	0.06	1.5	0.155	3.9	1.26	32.1	1142	1699	167
2×1/0	414	0.08	2.0	0.170	4.3	1.51	38.3	1693	2520	217
2×2/0	522	0.08	2.0	0.170	4.3	1.65	41.9	1908	2840	250
2×3/0	658	0.08	2.0	0.190	4.8	1.77	45.0	2600	3870	286
2×4/0	829	0.08	2.0	0.190	4.8	1.92	48.8	2675	3980	328
2×250	973	0.095	2.4	0.205	5.2	2.10	53.3	3434	5110	363
